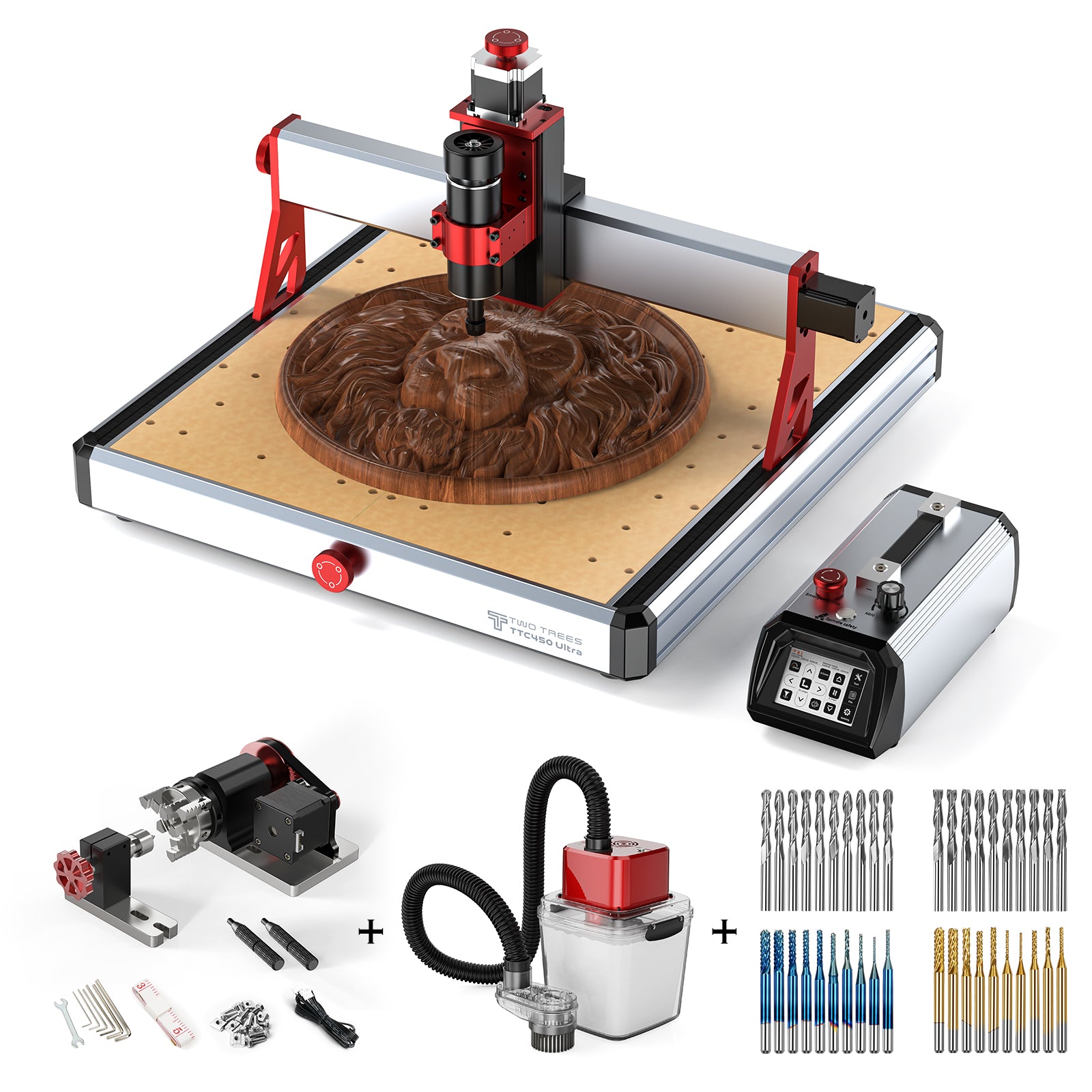

Twotrees TTC450 Ultra CNC Router Machine + 4th Axis + Vacuum Cleaner M1 + End Mills

The box includes a basic set of bits—10 V-bits, plus one each of the flat-end, chamfer, spiral, and straight-flute bits—and six sets of hold-down clamps. You can start testing cuts as soon as you unpack the machine, without buying additional bits first. Later, you can add bits with the appropriate cutting profiles for hardwood, metal, or fine engraving as needed.

Yes. The machine comes with a 500 W spindle and officially supports upgrades to an 800 W or 1,000 W AC trim router or a VFD spindle. The control box has the corresponding connections. The 500 W spindle is sufficient for everyday engraving; you can upgrade later if you need to cut thicker materials in batches.

The main components come pre-assembled. Follow the official assembly and calibration checklist step by step. A third-party test found that first-time assembly took just over 40 minutes. Be sure to calibrate the machine before using it; this can significantly improve the results.

The cause is often an incorrect steps-per-unit setting or a loose screw. Use calipers to measure the actual travel distance, then adjust the controller’s $100, $101, and $102 parameters in proportion to the error. Check the couplers and fastening screws as well. The official blog post, Assembly and Calibration Checklist, walks you through the calibration process.

The machine uses GRBL open-source firmware, so it works with most CAM software that supports GRBL, including Fusion 360, ArtCAM, EASEL, Carbide Create, and the Vectric series. For laser engraving, you can use LightBurn. Connect it to a computer with the included USB cable after installing the driver, or run jobs offline from a TF card.

Yes. The machine supports both CNC and laser modes natively, so there’s no need to flash the firmware. You can switch modes on the touchscreen, and the official laser module is plug-and-play. Always wear laser safety glasses and never leave the machine unattended while the laser is operating.

The default home position is at the lower-left corner. The touchscreen has a one-touch tool-setting function, and an optional probe is available for measuring the Z-axis. Re-set the tool height whenever you change the bit or workpiece to avoid crashes.

It can machine wood, plywood, acrylic, and PCB material. It can also machine soft metals such as aluminum, but use light cuts of 0.1–0.2 mm per pass and provide cooling. Third-party tests have shown that aluminum cutting is possible. Steel and stainless steel are suitable only for light, desktop-level work; the machine should not be presented to customers as an industrial milling machine.

For hardwood engraving with the 500 W spindle, a recommended starting range is 8,000–12,000 RPM. Use shallow cuts over multiple passes, keep the bit sharp, and use dust collection. The official dust-collection design is claimed to reduce dust by more than 85%. Don’t start at maximum speed: test a few settings on scrap material first, then use the settings that give you the result you want.

Clean away chips regularly, especially around the lead screws and limit switches, since dust buildup can cause unusual movement or noise. Check for loose screws and lubricate the lead screws and rails. Avoid operating or storing the machine in damp or heavily dust-laden environments. The Product Specifications document includes a maintenance checklist and schedule; following it can help extend the machine’s service life.

Contact the seller or official customer service to report an issue. Include your order number and a video of the problem to speed up troubleshooting. Common issues such as the machine not powering on, the controller failing to connect, or missing parts have established support procedures, so customers can contact support for help. For safety, remember three rules: stay with the machine while it’s operating, wear safety glasses, and disconnect the power before changing bits or clearing chips.
