Introduction

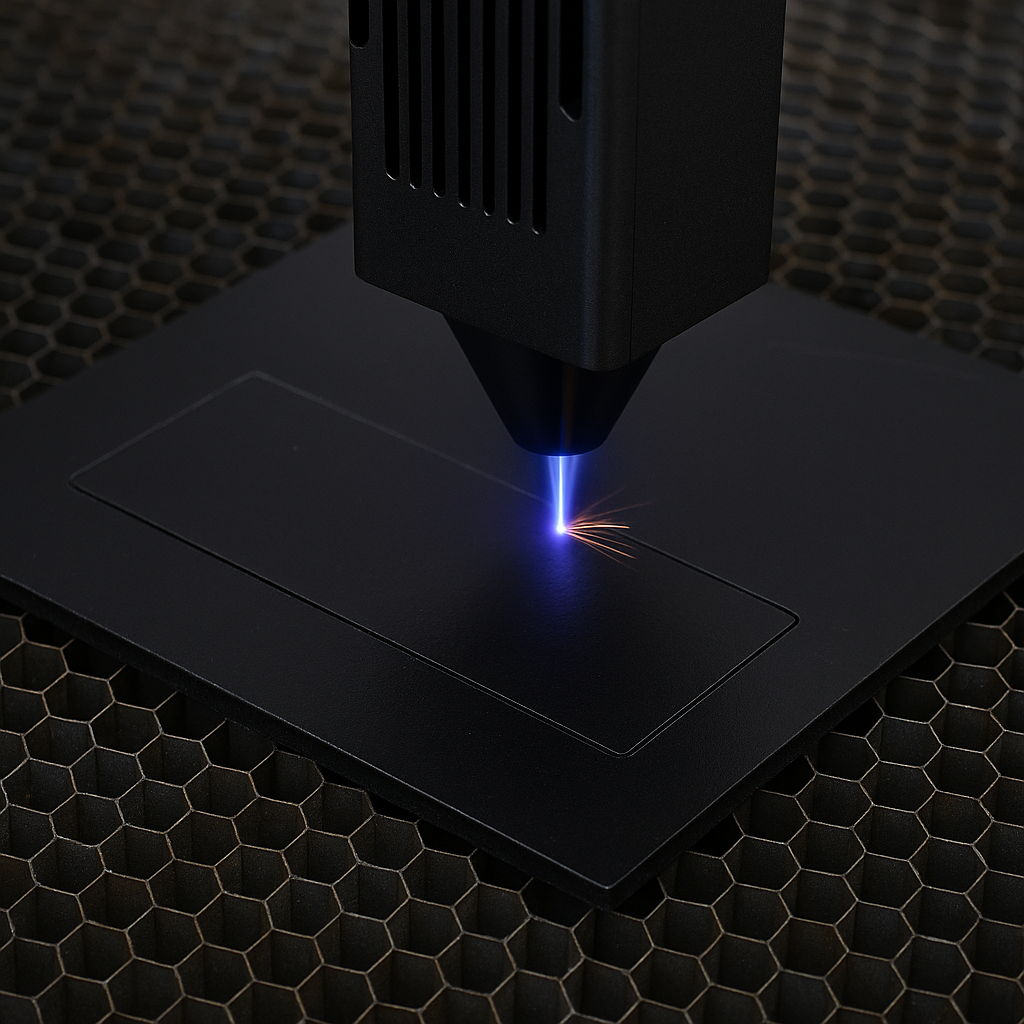

Acrylic (also known as PMMA or plexiglass) is one of the most popular materials for makers and hobbyists. From signage and jewelry to enclosures and home décor, it’s durable, lightweight, and available in endless colors. But if you own a diode laser, you may be wondering: Can a diode laser cut acrylic effectively?
The short answer is: yes—but with limitations. Unlike CO₂ lasers, diode lasers interact with acrylic differently. Understanding the types of acrylic, how diode wavelength affects cutting, and the right settings will help you avoid wasted material and frustration.
This guide covers everything you need to know about diode laser acrylic cutting—from choosing the right acrylic sheet to getting smooth edges and polished finishes.
Types of Acrylic: Cast vs. Extruded
Cast Acrylic
- Made by pouring liquid acrylic into molds and curing it.
- Better for engraving: Produces a frosty white effect when engraved.
- Cuts cleanly with lasers, though edges can be rougher compared to extruded.
- Generally more expensive than extruded.
Extruded Acrylic
- Produced by pushing acrylic through rollers in a continuous sheet.
- Cheaper and easier to manufacture.
- Less ideal for engraving: Engraved areas often appear clear instead of frosted.
- Cuts more smoothly than cast acrylic, producing flame-polished-looking edges.
Takeaway:
If you want crisp engravings → use cast acrylic.
If you want smooth cuts and clean edges → use extruded acrylic.
Why Some Diode Lasers Struggle with Clear Acrylic
Here’s the big challenge: most diode lasers cannot cut or engrave clear acrylic effectively.
Why? It comes down to wavelength and light absorption.
- Diode lasers usually operate at 450nm (blue light). Clear acrylic is transparent to this wavelength, meaning the laser passes through without heating the material.
- CO₂ lasers, by contrast, operate at 10,600nm (infrared). Clear acrylic absorbs this wavelength strongly, allowing clean and precise cutting.
What This Means in Practice
- Opaque acrylic (black, red, green, blue, etc.): Can be cut by a diode laser since pigments absorb the laser light.
- Translucent or frosted acrylic: Somewhat cuttable depending on the color and thickness.
- Clear acrylic: Nearly impossible to cut with a diode laser.
Workarounds for Clear Acrylic
- Paint the surface black (using washable paint or tape) so the laser energy is absorbed.
- Use a protective mask film: Many acrylic sheets come with a brown paper mask. Leave it on while cutting—this helps absorb the beam.
- Backlight blocking: Place a dark sheet or material under the acrylic to reduce laser pass-through.
Still, if your project primarily involves clear acrylic, a CO₂ laser is the better investment.
Best Diode Lasers for Acrylic Cutting
Not all diode lasers are created equal. Power, beam shape, and focus precision make a big difference in cutting acrylic.
What to Look for in a Diode Laser for Acrylic
- Optical Power: At least 10W of true optical output (not just input wattage).
- Compressed Spot Technology: A tighter, more rectangular beam cuts more efficiently.
- Air Assist: Reduces flare-ups, keeps cuts clean, and helps remove melted debris.
- Sturdy Frame and Focus Adjustment: Essential for consistent cuts on thicker sheets.
Popular Diode Lasers for Acrylic
- TwoTrees TTS Series / TS Series: Affordable options with compressed spot diodes. Great for hobbyists experimenting with acrylic.
- xTool D1 Pro 20W: Known for cutting up to 8mm black acrylic in a single pass with proper settings.
- Atomstack X30 Pro (33W module): One of the most powerful diode options, can handle thicker opaque acrylic.
- Ortur Laser Master 3: Reliable mid-tier machine with good cutting performance on colored acrylic.
Rule of Thumb:
10W diode → Cuts up to 3mm opaque acrylic with multiple passes.
20W diode → Cuts 5–8mm opaque acrylic in 1–3 passes.
30W+ diode → Handles 10mm+ with proper settings.
Tips for Cutting and Engraving Acrylic with a Diode Laser
Cutting Settings (Starting Points)
- Power: 90–100%
- Speed: 200–600 mm/min depending on thickness
- Passes: Multiple passes often required for 3mm+
- Air Assist: Strongly recommended
Always test cut small shapes before committing to a full design.
Engraving Settings
- Cast acrylic engraves better than extruded.
- Use lower power (20–40%) and higher speed to avoid melting.
- Defocus the beam slightly (0.5–1mm) to get wider frosted engrave marks.
Avoiding Common Problems
- Flame-ups: Use air assist and don’t leave the laser unattended.
- Melted edges: Lower speed slightly, use more passes instead of blasting with full power at once.
- Inconsistent cuts: Ensure the acrylic sheet is flat and your laser is focused correctly.
Design Considerations
- Kerf Width: The laser beam removes material (about 0.1–0.2mm). Account for this in tight-fitting designs.
- Node Editing: Simplify complex vector paths to prevent unnecessary stops and burns.
- Masking Tape: Apply painter’s tape to reduce smoke stains.
Finishing Techniques and Edge Polishing
Flame Polishing
- Use a small butane torch to lightly flame the edge.
- The heat melts micro-scratches, leaving a glossy, glass-like finish.
- Be careful not to overheat—edges can bubble or warp.
Sanding and Buffing
- Start with fine sandpaper (400–600 grit) to smooth edges.
- Move up to 1000–2000 grit wet sanding for a satin finish.
- Finish with a buffing wheel and plastic polish for clarity.
Solvent Polishing (Advanced)
- Apply acrylic solvent (like Weld-On #4) to edges using a brush or applicator.
- The solvent slightly melts the surface, creating a polished finish.
- Requires ventilation and careful handling.
Assembly Techniques
- Use acrylic cement for joining pieces (Weld-On #3 or #4).
- Avoid superglue—it can cause frosting or cracks.
- For removable parts, use threaded inserts or acrylic-compatible fasteners.
Diode vs. CO₂ Lasers for Acrylic
| Feature | Diode Laser | CO₂ Laser |
|---|---|---|
| Wavelength | 450nm (blue) | 10,600nm (infrared) |
| Best for | Opaque acrylic, engraving coated materials | Clear + colored acrylic, professional cutting |
| Cost | $300–$1500 | $2000+ |
| Cutting Thickness | 3–10mm (opaque only) | Up to 20–25mm |
| Engraving Quality | Frosted effect only on cast acrylic | Crisp engravings on all acrylic types |
| Size | Compact, desktop-friendly | Larger footprint, requires cooling |
| Maintenance | Minimal | Higher (water cooling, mirrors, tube replacement) |
Verdict:
Hobbyists and budget users → Diode laser (good enough for colored acrylic).
Professionals or anyone working with clear acrylic → CO₂ laser.
Safety Considerations
- Use an enclosure with proper ventilation.
- Wear safety goggles rated for your laser wavelength.
- Never leave the laser unattended.
- Keep a fire extinguisher nearby.
Final Thoughts
A diode laser can cut acrylic, but only under the right conditions. Colored and opaque acrylic sheets are your best bet. Clear acrylic remains a challenge, and for that, a CO₂ laser is the gold standard.
By choosing the right type of acrylic, optimizing settings, and applying finishing techniques, you can produce professional-quality projects with a diode laser—everything from signage and jewelry to small enclosures and décor.
If you’re serious about acrylic projects and want versatility across all sheet types, consider upgrading to a CO₂ system. But if you’re a hobbyist looking for affordable and compact solutions, today’s powerful diode lasers can take you surprisingly far.
